System Lineup

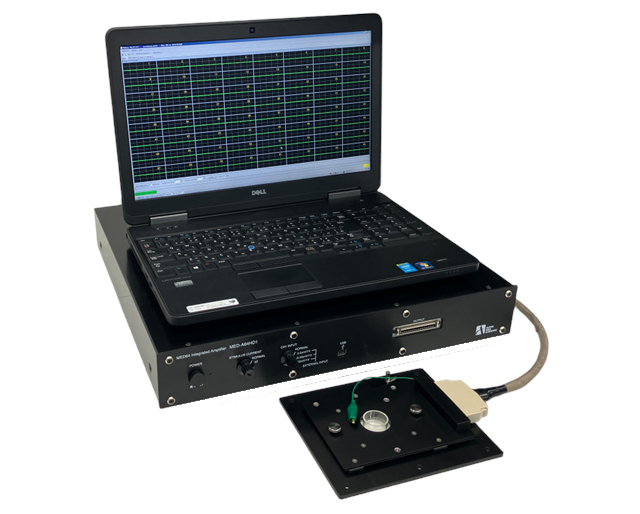

MED64-Basic
Basic system suitable for all applications (Acute slices, Cultured cells, Slice cultures)
MED64-Basic System is user-friendly microelectrode array (MEA) system for in vitro extracellular electrophysiology. It features with the industry's most sensitive MEA system, providing high-quality reliable data. Created by Panasonic, the MED64 has been on market for 20 years and has hundreds of users and publications worldwide.
- acute
- organotypic
- dissociated
- Features
- Acquire signal from 64 electrodes simultaneously.
- Stimulation through any of the 64 electrodes (up to 2 electrodes simultaneously) using internal stimulator.
- Unrivaled signal-to-noise ratio of 0.8 μV RMS noise level.
- Record inside of a humidified incubator.
- Large current-driven stimulation via any electrode.
- High-quality evoked signal without interference of stimulus artifacts.
- One system can be used for multiple experiments with its amplifier's broad acquisition bandwidth and analog low pass/high pass filter.
- Analyze data online during your experiment or offline after.
- Suitable for acute slices, slice cultures, and cell cultures.
- Low-cost upgrade to the MED64-Allegro or Quad II System.

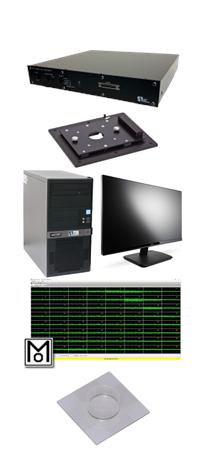

Configuration
- MED64 Integrated Amplifier [MED-A64HD1] x 1
- MED Connector [MED-C03/ MED-CP04] x 1
- Data Acquisition PC x 1
- Mobius x 1
- MED Probe x 1

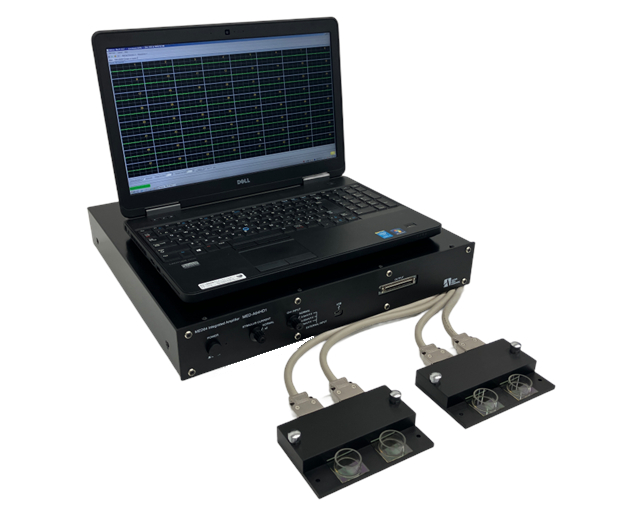

MED64-Quad II
The most sensitive and flexible medium throughput MEA system for both acute and cultured applications
MED64-Quad II system is a medium throughput MEA system both for acute and cultured applications. Extracellular signals are recorded from 4 independent Probes/Connectors, which will give high flexibility. It is a powerful solution for drug discovery screening. The MED64's high fidelity will provide more accurate and reliable data allowing for advanced screening.
- acute
- organotypic
- dissociated
- Features
- Acquire extracellular signals from 4 samples (16 electrodes/sample).
- Stimulation to all samples sequentially (up to 2 electrodes simultaneously) using internal stimulator.
- Unrivaled signal-to-noise ratio of 0.8 μV RMS noise level.
- Large current-driven stimulation via any electrode.
- High-quality evoked signal without interference of stimulus artifacts.
- Recording inside of a humidified incubator.
- One system can be used for multiple experiments with its amplifier's broad acquisition bandwidth and analog lowpass/highpass filter.
- Analyze data online during your experiment or offline after.
- Suitable for acute slices, slice cultures, and cell cultures.
- Low-cost shift to MED64-Allegro/Basic System.

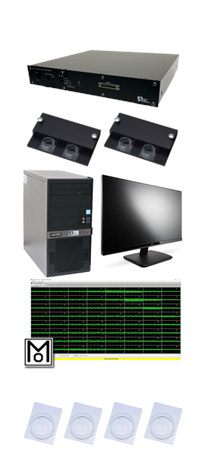

Configuration
- MED64 Integrated Amplifier [MED-A64HD1] x 1
- MED Duet Connector [MED-C05] x 2
- MED Thermo Base [MED-CPB02] x 2 (optional)
- Data Acquisition PC x 1
- Mobius x 1
- MED Probe 16 x 4

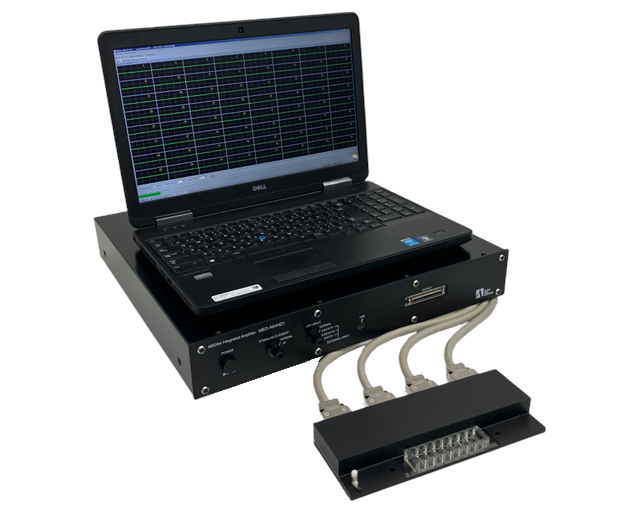

MED64-Allegro
The most sensitive medium throughput MEA system with multiple wells. Ideal for drug testing using stem cell-derived cardiomyocytes/neurons
MED64-Allegro System is a medium throughput MEA system for cultured applications. It is an ideal solution for drug testing using stem cell-derived cardiomyocytes or/and neurons. The MED64's high fidelity will provide more accurate and reliable data allowing advanced screening as well as analysis during the testing.
- dissociated
- Features
- Acquire extracellular signals from 4 or 8 samples (16 electrodes per sample for 4 well / 8 electrodes for 8 well).
- Stimulation through 1 or 2 electrodes per sample sequentially.
- Unrivaled signal-to-noise ratio of 0.8 μV RMS noise level.
- Large current-driven stimulation via any electrode.
- Recording inside of a humidified incubator.
- One system can be used for multiple experiments with its amplifier's broad acquisition bandwidth and analog lowpass/highpass filter.
- Analyze data online during your experiment or offline after.
- Suitable for cell cultures.
- Low-cost shift to MED64-Quad II/Basic System.

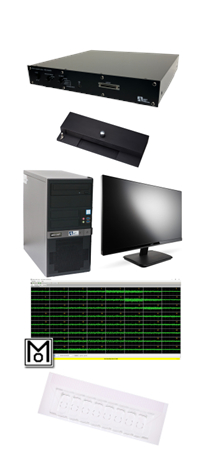

Configuration
- MED64 Integrated Amplifier [MED-A64HD1] x 1
- MED Multi-well Connector [MED-C11] x 1
- MED Thermo Base [MED-CPB02] x 1 (optional)
- Data Acquisition PC x 1
- Mobius x 1
- MED Multi-well Probe x 1

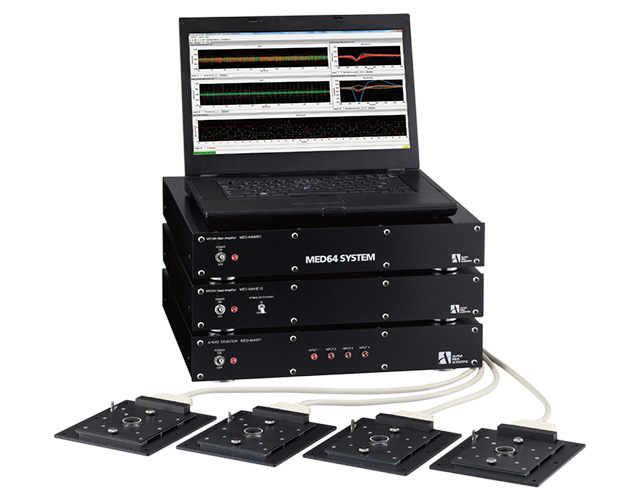

MED64-Plex 4/8
Medium throughput system for recording from 64 electrodes on 4 or 8 samples
MED64-Plex 4/8 System is a medium throughput MEA system allowing recording at all 64 electrodes from 4 or 8 samples. The MED64’s high fidelity will provide more accurate and reliable data allowing advanced screening.
- acute
- organotypic
- dissociated
- Features
- Acquire extracellular signals from 4 or 8 samples (64 electrodes per sample).
- Stimulation through 1 or to 2 electrodes per sample sequentially.
- Unrivaled signal-to-noise ratio of 0.8 μV RMS noise level.
- Large current-driven stimulation via any electrode.
- Recording inside of a humidified incubator.
- One system can be used for multiple experiments with its amplifier’s broad acquisition bandwidth and analog lowpass/highpass filter.
- Analyze data online during your experiment or offline after.
- Suitable for acute slices, slice cultures, and cell cultures.
- Low-cost upgrade from MED64-Basic/QuadII/Allegro System.

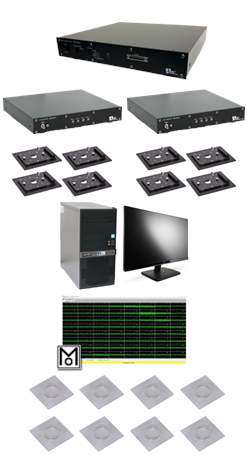

Configuration
- MED64 Integrated Amplifier [MED-A64HD1] x 1
- MED64 Multiplexer I [MED-A64SF1] x 1
- MED64 Multiplexer II [MED-A64SF2] x 1 (for Plex 8)
- MED Connector [MED-C03/ MED-CP04] x 4 or 8
- Data Acquisition PC x 1
- Mobius x 1
- MED Probe x 4 or 8

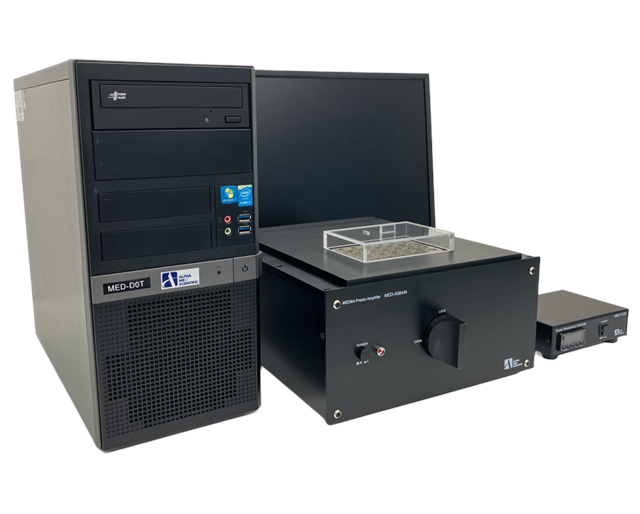

MED64-Presto
Discover the beauty that only the highest-sensitivity MEA can bring to your research!
The MED64 Presto is a microelectrode array (MEA) system that incorporates the industry leading sensitivity of the MED64 platform in an easy to use multi-well format. Modern, intuitive, easy to use software makes data collection and analysis effortless.
The MED64 Presto is engineered for researchers who need the correct answer to their scientific inquiries and reveals data that can be missed by other platforms.
- dissociated
- Features
- Flexible 6, 24, and 48 multi-well formats.
- Industry leading high-sensitivity, low-noise system [0.9 µV (< 3 kHz)], providing excellent signal-to-noise.
- New carbon nanotube electrodes provide a friendly substrate for cells to adhere.
- Transparent glass base allows clear visibility of cells and compatibility with imaging.
- Innovative well design (sakura), and ready-to-use accessories that help plating cells.
- Integrated stage heater and environmental chamber.
- Modern, state of the art software.

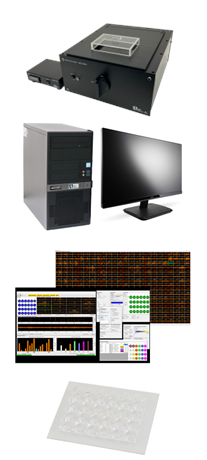

Configuration
- MED64-Presto Amplifier [MED-A384iN] x 1
- Data Acquisition PC x 1
- MED64 Symphony x 1
- MEA Plate x 1

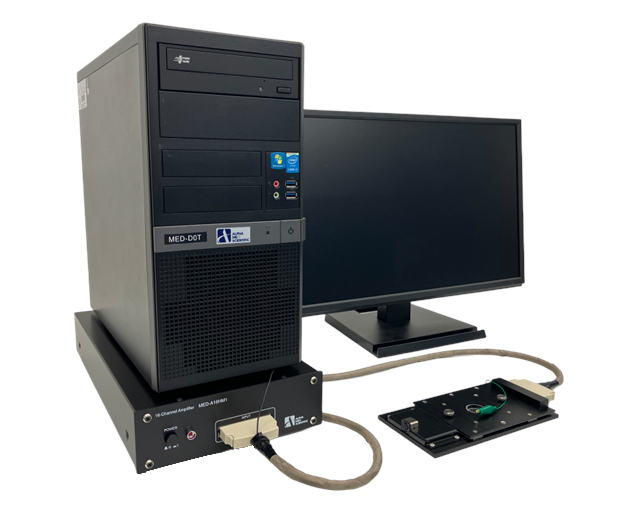

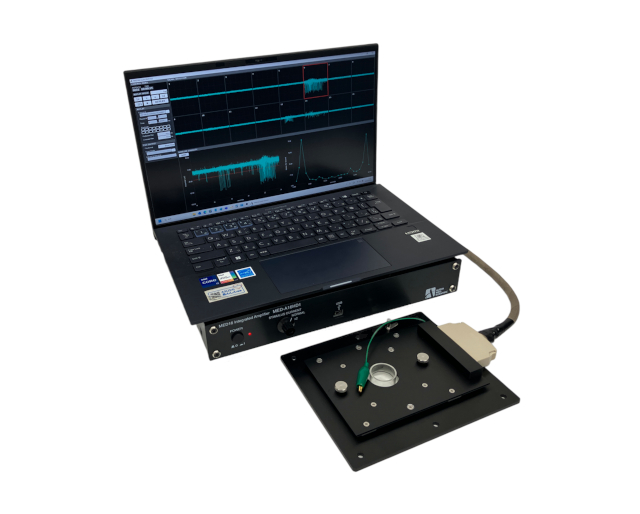

MED64-Entry
The entry model of MED64 System consisting of 16-channel amplifier. Acquires extracellular potential from predetermined 16 out of 64 electrodes patterned on MED Probe.
- acute
- organotypic
- dissociated
- Features
- Limited number of channels, but sufficient and affordable for simple electrophysiological evaluation.
- Enables to deliver stimulus current to specified electrodes (up to two electrodes simultaneously).
- Dedicated control software specialized for data acquisition only is included free of charge.

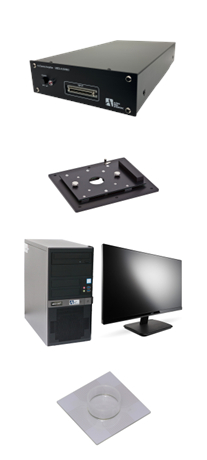

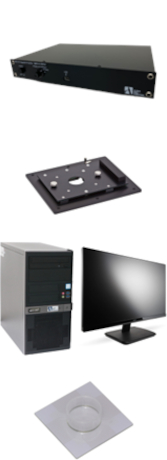

Configuration
- MED64-Entry Amplifier [MED-A16HM1] x 1
- MED Connector [MED-C03/ MED-CP04] x 1
- Data Acquisition PC x 1
- MED Probe x 1
