MED64 Integrated Amplifier [MED-A64HD1]
- A new 64-channel amplifier integrated MED-A64MD1A and MED-A64HE1S into one unit with their functions remained.
- A switching dial to display a trigger output signal to an external device (i.e. MED-S11 or MED-S12 etc.) on ch1 is equipped standard.
- SPECIFICATIONS
-
General Information Power supply DC 12 V, 0.9 A, 10.8W Weight (w/o PSU) 6.6 kg Dimensions (w/o PSU) W430 x D437 x H74 (mm) Amplifier Number of channels 64 Gain x 200 - 2170 Bandwidth 0.1 Hz - 10 kHz (+0 dB to -3 dB) Input impedance 100 MΩ Input terminal 68 pin x 1, 20 pin x 4 Output terminal 68 pin x 1 High-pass filter (LCF) 0.1 / 1 / 10 / 100 Hz (-12 dB/oct) Low-pass filter (HCF) 1 / 2 / 2.5 / 5 / 7.5 / 10 kHz (-12 db/oct) RMS noise (short-circuited) 14 nV/√Hz Power Supply Unit (PSU) Input AC 100 - 240 V (50 / 60 Hz) Output DC 12 V, 5 A, 60 W Digitizer Resolution 16 bit Sampling rate 20 kHz Max. input ±5 V Output USB 2.0 Stimulator Number of channels 2 Output format Current-driven Max. output ±200 µA F1 stimuluis input Max. input ±4 µV I/V conversion ratio 25 µA/V F1 output Max. outnput ±4 µV External signal input Receiving channel Channel 1 Sensitivity 0.5 / 0.05 / 0.02 mV/1V

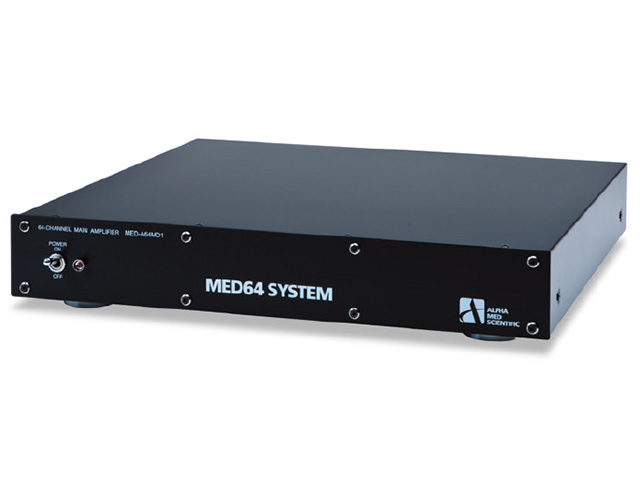

MED64 Main Amplifier [MED-A64MD1A] *discontinued
- Broad acquisition bandwidth of 0.1 Hz -10 kHz.
- Low-cut filter (High-pass filter) with 0.1, 1, 10, and 100 Hz cutoff.
- Built-in digitizer.
- USB connection to computer.
- SPECIFICATIONS
-
General Information Size W430 x D437 x H74 (mm) Weight 5.9 kg Amplifier Number of channels 64 Gain x 20 - 217 Bandwidth 0.1 Hz - 10 kHz Analog low-cut filter 0.1 / 1 / 10 / 100 Hz Analog high-cut filter 1 / 2 / 2.5 / 5 / 7.5 / 10 kHz Input impedance 100 MΩ Digitizer Resolution 16 bit Sampling rate 20 kHz Output USB Power Adaptor Input AC 100 - 240 V (50 / 60 Hz) Output DC ±12 V
MED64 Main Amplifier [MED-A64MD3]
- Broad acquisition bandwidth of 0.1 Hz -10 kHz.
- Low-cut filter (High-pass filter) with 0.1, 1, 10, and 100 Hz cutoff.
- Built-in digitizer.
- USB connection to computer.
- SPECIFICATIONS
-
General Information Size W430 x D437 x H74 (mm) Weight 5.9 kg Amplifier Number of channels 64 Gain x 20 - 217 Bandwidth 0.1 Hz - 10 kHz Analog low-cut filter 0.1 / 1 / 10 / 100 Hz Analog high-cut filter 1 / 2 / 2.5 / 5 / 7.5 / 10 kHz Input impedance 100 MΩ Digitizer Resolution 16 bit Sampling rate 20 kHz Output USB Power Adaptor Input AC 100 - 240 V (50 / 60 Hz) Output DC ±12 V

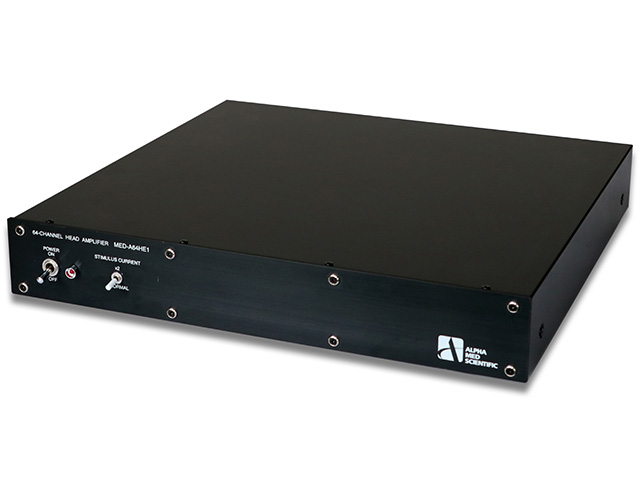

MED64 Head Amplifier [MED-A64HE1S] *discontinued
- Built-in 2 channel current-driven stimulator.
- 64ch x 1 and 16ch x 4 input terminals allowing connection to all types of connectors.
- A whole system in cobination with MED-A64MD1A.
- SPECIFICATIONS
-
General Information Size W430 x D437 x H74 (mm) Weight 6.6 kg Amplifier Number of channels 64 Gain x 10 Bandwidth 0.1 Hz - 10 kHz Input impedance 100 MΩ Output impedance 10 kΩ Noise level ±7 µV Stimulator Number of channels 2 Output format Current-driven Maximum input voltage ±4 V Maximum output current ±200 µA Power Adaptor Input AC 100 - 240 V (50 / 60 Hz) Output DC ±12 V
MED64 Head Amplifier [MED-A64HE3]
- Built-in 2 channel voltage-driven stimulator enabling to deliver identical stimuli to all electrodes simulataneously .
- 64ch x 1 and 16ch x 4 input terminals allowing connection to all types of connectors.
- A whole system in cobination with MED-A64MD3.
- SPECIFICATIONS
-
General Information Size W430 x D437 x H74 (mm) Weight 6.6 kg Amplifier Number of channels 64 Gain x 10 Bandwidth 0.1 Hz - 10 kHz Input impedance 100 MΩ Output impedance 10 kΩ Noise level ±7 uV peak to peak Stimulator Number of channels 2 Output format Voltage-driven Maximum input voltage ±4 V Maximum output voltage ±2 V Power Adaptor Input AC 100 - 240 V (50/60 Hz) Output DC ±12 V
MED64-Presto Amplifier [MED-A384iN]
- Amplifier dedicated to 6, 24, and 48 multi-well format MEA plate.
- Industry leading high-sensitivity, low-noise system [0.9 µV (< 3 kHz)], providing excellent signal-to-noise.
- New carbon nanotube electrodes provide a friendly substrate for cells to adhere.
- Transparent glass base allows clear visibility of cells and compatibility with imaging.
- Integrated stage heater and environmental chamber.
- Modern, state of the art software.
- SPECIFICATIONS
-
General Information Amplifier power supply DC ±12 V, 2 A, -0.2 A, 25 W Amplifier weight (w/o PSU) 8.4 kg Amplifier dimensions (w/o PSU) W300 x D388 x H155 (mm) Temperature controller power supply DC ±12 V, 30 W Temperature controller weight (w/o PSU) 366 g Temperature controller dimensions (w/o PSU) W150 x D110 x H50 (mm) Amplifier Number of channels 384 Gain x 1000 Bandwidth 0.1 Hz - 5 kHz Input impedance 100 MΩ RMS noise (short-circuited) 13 nV/√Hz Input leakage current 30 pA Input range ±5 mV Digitizer Resolution 16 bit Sampling rate 20 kHz/ch Max. input ±5 mV Output USB 2.0 Stimulator Number of channel 1 Output format Voltage-driven Maximum output voltage ±2 V Output electrodes Switchable fixed 1 (unipolar) and 2 electrodes (bipolar) stimuli External Stimulus Input Number of input channels 1 Max. input ±4 V I/O conversion ratio 2:1 Trigger Output Number of terminals 1 Max. output ±4 V Connector Number of contact pins 432 (48 for ref electrodes) Contact pin type 1.4 mm stroke spring probe Contact pin material Gold plating Power supply unit (PSU) Input AC 100 - 240 V (50/60 Hz) Output DC ±12 V, +4 A -1 A, 60 W Temperature Controller Power supply DC ±12 V, +2.5 A -1 A, 30 W Heater Transistor x 4 Sensor Sensor IC Temperature controller Omron E5GC Range of verified < 1℃ 32 - 37℃ (Ta=25℃) Resolution ±0.1℃

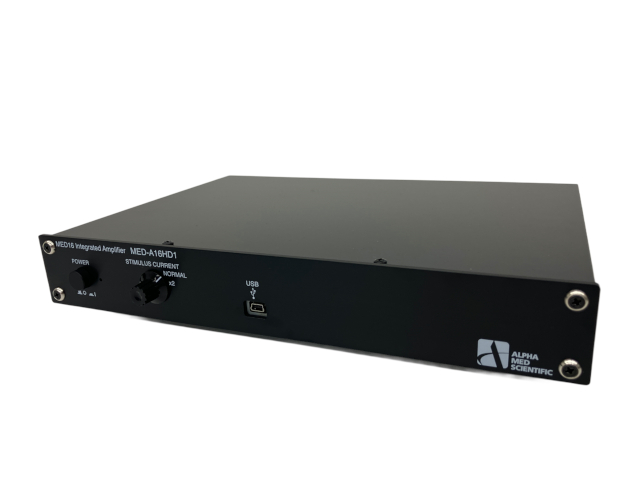

MED64-Entry II Amplifer [MED-A16HD1]
- Broad acquisition bandwidth of 0.1 Hz -10 kHz.
- Acquire signals from pre-specified 16 out of 64 electrodes on the MED probe.
- Built-in 2 channel current-driven stimulator.
- USB connection to computer.
- SPECIFICATIONS
-
General Information Power supply DC 12 V Weight (w/o PSU) 1.7 kg Dimensions (w/o PSU) W298 x D237 x H54 (mm) Amplifier Number of channels 16 Bandwidth 0.1 Hz - 10 kHz (+0 dB to -3 dB) Gain x 1000 Input impedance 100 MΩ Input terminal 68 pin x 1 RMS noise (short-circuited) 14 nV/√Hz Digitizer Resolution 16 bit Sampling rate 20 / 80 kHz Stimulator Number of channels 2 Output format Current-driven Max. output ±200 µA F1 output Max. output ±4 V Power supply unit (PSU) Input AC 100 - 240 V (50 / 60 Hz) Output DC 12 V, 5 A, 60 W
MED64-Entry Amplifer [MED-A16HM1] *discontinued
- Broad acquisition bandwidth of 0.1 Hz -10 kHz.
- Acquire signals from pre-specified 16 out of 64 electrodes on the MED probe.
- Built-in 2 channel current-driven stimulator.
- eSATA connection to computer.
- SPECIFICATIONS
-
General Information Size W215 x D437 x H74 (mm) Weight 3.3 kg Amplifier Number of channels 16 Gain x 1000 Bandwidth 0.1 Hz - 10 kHz Input impedance 100 MΩ Digitizer Resolution 16 bit Sampling rate 20 kHz/ch Output format D-sub 68 pin x 2 Power Adaptor Input AC 100 - 240 V (50/60 Hz) Output DC ±12 V
Connectors
MED Connector [MED-C03]
- Provides a mechanically-stable platform for the MED Probe.
- No active onboard electrical circuitry; Connectors can safely be placed in a humidified environment (e.g. cell culture incubator).
- Provides clear optical path through MED Probe for microscopy.
- SPECIFICATIONS
-
General Informations Size W174 x D150 x H21 (mm) Wegiht 480 g Material Aluminum, Gold plate for contact pins MED Probe securing mechanism Screw down Contact resistance < 30 mΩ
MED Duet Connector [MED-C05]
- Connector for the MED64-Quad II System.
- Used for communication between the MED Probe 16 and the MED64 Head Amplifier.
- Two sets of MED Probe 16 is installed into.
- No active onboard electrical circuitry; Connectors can safely be placed in a humidified environment (e.g., cell culture incubator).
- Compact design. Easy-to-load MED Probe 16.
- Compatible with all types of MED Probe 16.
- SPECIFICATIONS
-
General Information Size W130 x D85 x H30 (mm) Weight 381 g Material Aluminum, Gold plate for contact pins MED Probe securing mechanism Slide in Contact resistance < 30 mΩ
MED Multi-well Connector [MED-C11]
- Connector for the MED64-Allegro System.
- Used for communication between the MED Multi-well Probe and the MED64 Head Amplifier.
- No active onboard electrical circuitry; Connectors can safely be placed in a humidified environment (e.g. cell culture incubator).
- Compact design.
- Easy–to-load the MED Multi-well Probe.
- SPECIFICATIONS
-
General Infromation Size W210 x D83 x H34 (mm) Weight 700 g Material Aluminum, Gold plate for contact pins MED Probe securing mechanism Slide in Contact resistance < 30 mΩ

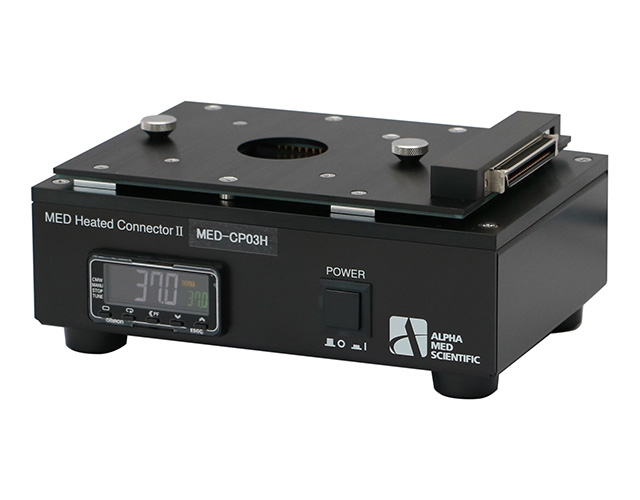

MED Heated Connector [MED-CP04]
- Heater and thermocouple sensors are incorporated into the bottom unit of the MED Connector.
- Bath temperature in the MED Probe is maintained using a dedicated temperature controller.
- Can be used with or without perfusion. Included tubing through connector provides in-line solution heating.
- Aperture in the unit bottom allows observing biological samples with microscope.
- SPECIFICATIONS
-
General Information Size Connector: W200 x D112 x H21 (mm)
Temperature controller: W153 x D115 x H50 (mm)Weight Connector: 510 g
Temeprature controller: 357 gMaterial Aluminum, Gold plate for contact pins MED Probe securing mechanism Screw down Contact resistance < 30 mΩ Heater Transistor Temperature accuracy ±0.1℃ Range of verified < 1℃ with perfusion: < 32℃ (Ta=25℃)
without perfusion: > 37℃ (Ta=25℃)

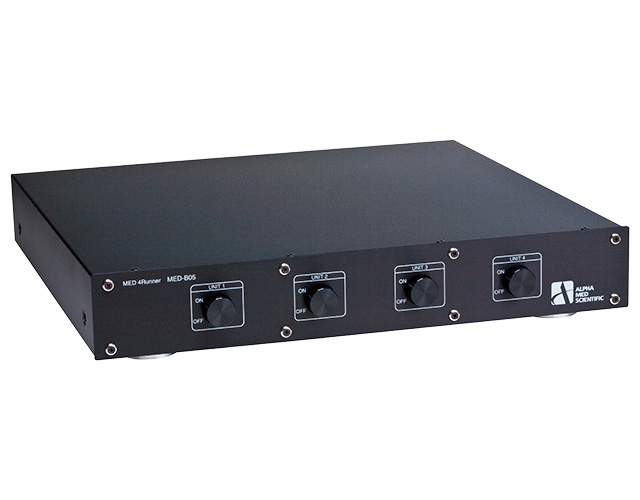

Others
MED64 Multiplexer [MED-A64SF1]
- Multiplexer used for the MED64 Plex 4/8 System.
- Allowing time-sequenced acquisition from 4 or 8 samples.
- SPECIFICATIONS
-
General Information Size W430 x D437 x H74 (mm) Weight 6.1 kg Number of throght input - Gain x 1 Maximum input/output voltage ±4 V Control signal 3 bit BCO Control signal level TTL Power Adaptor Input AC 100 - 240 V (50/60 Hz) Output DC ±12 V
MED64 Multiplexer [MED-A64SF2]
- Multiplexer used for the MED64 Plex 8 System.
- Allowing time-sequenced acquisition from 4 or 8 samples.
- SPECIFICATIONS
-
General Information Size W430 x D437 x H74 (mm) Weight 6.2 kg Number of throght input 1 (Input 1-4) Gain x 1 Maximum input/output voltage ±4 V Control signal 3 bit BCO Control signal level TTL Power Adaptor Input AC 100 - 240 V (50/60 Hz) Output DC ±12 V

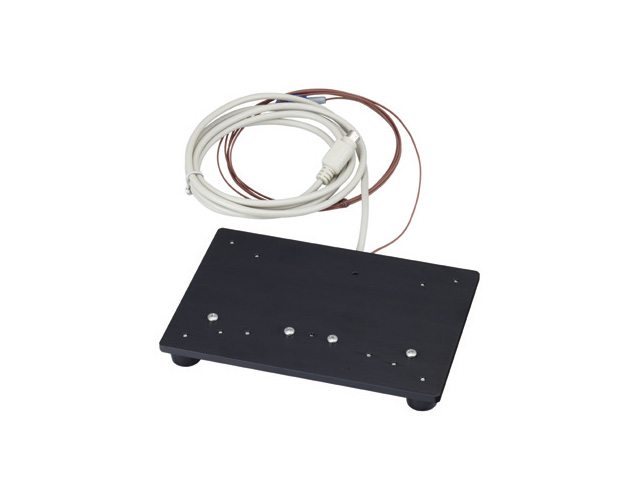

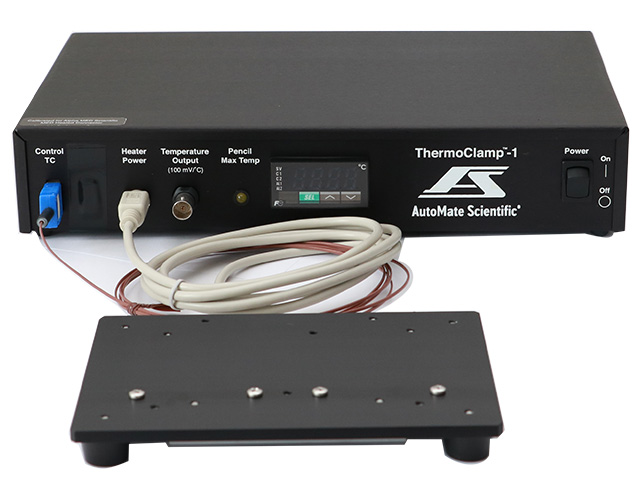

MED Thermo Pad [MED-CPB02]
- Thermo pad for MED Duet Connector. Loading a MED-C05 or a MED-C11 to maintain temperature around recording electrodes on the MED Probe with internal controller.
- SPECIFICATIONS
-
General Informations Size W160 x D125 x H54 (mm) Weight 602 g Material Aluminum Heater Transistor Temperature accuracy ±0.1℃ Range of verified < 1℃ With perfusion: < 32℃ (Ta=25℃)
Without perfusion: > 37℃ (Ta=25℃)
Data Acquisition PC [MED-D0T]
- Desktop PC and display monitor satisfying specifications for MED64 system (sold only in Japan).
- SPECIFICATIONS
-
General Information Size Desktop PC: W175 x D385 x H365 (mm)
Display monitor: W533 x D180 x H388 (mm)Weight Desktop PC: 6.9 kg
Display monitor: 4.0 kgCase type Mini tower OS Windows 10 Pro 64bit CPU Intel Core i7-6700K (4 core/ 4.00GHz/ 8MB cache) RAM 16GB (8GB x 2) Main disk 512GB SSD 2nd disk 2TB HDD (7200rpm/6Gbps) Display monitor 23 inchs with 1920 x 1080 resolution Accessories Keyboard, Mouse Power Adaptor Input AC 100 - 240 V (50/60 Hz) Output DC ±12 V
MED Feedback Stimulator [MED-S07]
- Receives an analog signal from one of 64 electrodes as a trigger to start stimuli at any time.
- Stimulus pattern signals are configured on the dedicated program independent of Mobius. Enabling modification of stimulus interval or intensity in real-time, expand the width of experiments.
- SPECIFICATIONS
-
General Information Size W265 x D180 x H55 (mm) Weight 850 g Material Aluminum, Iron Output format Biphasic voltage Number of output 2 (-+/+-) Maximum output voltage ±4 V Output pulse duration 0.1 - 2.0 ms (0.1 ms) Output pulse interval 1 - 5000 ms (1 ms) Power Adaptor Input AC 100 - 240 V (50/60 Hz) Output DC ±12 V
MED Pacing Controller [MED-S09]
- External stimulus pulse generator mainly designed for pacing cardiac cells or tissue with MED64-Basic.
- Unlike standard software control, enabling modification of stimulus interval or intensity by the control panel on the front of the main unit while data acquisition.
- Also enabling keep stimulating cardiac cells or tissue while data acquisition is stopped.
- SPECIFICATIONS
-
General Information Size W265 x D180 x H55 (mm) Weight 850 g Material Aluminum, Iron Output format Biphasic voltage Number of output 2 (-+/+-) Maximum output voltage ±4 V Output pulse duration 0.1 - 2.0 ms (0.1 ms) Output pulse interval 1 - 5000 ms (1 ms) Power Adaptor Input AC 100 - 240 V (50/60 Hz) Output DC ±12 V
MED Opto Stimulator [MED-S11]
- Enables to deliver light stimulation at arbitrary time and intensity based on trigger input from MED64 Integrated Amplifier.
- Dedicated blue and white LED unit is supported.
- Stimulus events can be recorded on ch1 by switching the dial of MED64 Integrated Amplifier.
- SPECIFICATIONS
-
General Information Size Controller: W215 x D230 x H75 (mm)
LED unit (head): W30 x D55 x H25 (mm)
LED unit (cable): 2 (m)Weight Controller: 1.8 kg
LED unit: 146 gMaterial Aluminum, Iron Power Adaptor Input AC 100 - 240 V (50/60 Hz) Output DC ±12 V
MED Opto Stimulator [MED-S12]
- Enables to deliver light stimulation at arbitrary time and intensity based on trigger input from MED64 Integrated Amplifier.
- Dedicated green, red, amber and blue LED unit is supported.
- Stimulus events can be recorded on ch1 by switching the dial of MED64 Integrated Amplifier.
- SPECIFICATIONS
-
General Information Size Controller: W215 x D230 x H75 (mm)
LED module (head): W30 x D55 x H25 (mm)
LED module (cable): 2 (m)Weight Controller: 1.8 kg
LED unit: 146 gMaterial Aluminum, Iron Power Adaptor Input AC 100 - 240 V (50/60 Hz) Output DC ±12 V

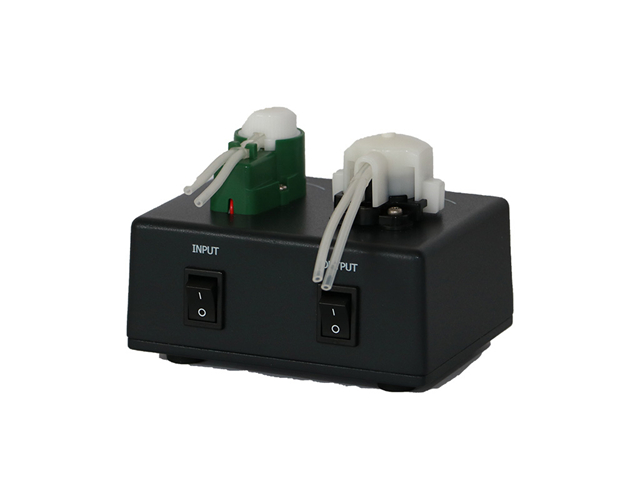

MED Ring Pump [MED-KTP01] *discontinued
- DC motor pump with unchangeable flow rate, but extremely low loading to tubing.
- Its compact size saves space to install.
- SPECIFICATIONS
-
General Information Size W110 x D90 x H86 (mm) Weight 340 g
MED Ring Pump [MED-KTP02]
- DC motor pump with unchangeable flow rate, but extremely low loading to tubing.
- Its compact size saves space to install.
- SPECIFICATIONS
-
General Information Size W120 x D80 x H100 (mm) Weight 514 g
